780er Horn





A statement of uniqueness. It sets the audiophile standard par excellence: our 780 horn series. With comprehensive innovations, our undisputedly leading models in the premium segment are now going to take the next step. Their irrefutable highlight is the world’s largest hyperspherical horn offering 780 mm of diameter. It performs  the midrange over five octaves, has an ideal phase response and an optimal omnidirectional radiation behaviour. Full dynamics and unprecedented tonal clarity are the audible result of our innovative advancements on our way from the spherical to the hyperspherical horn concept.



Our ion tweeter impresses as well with its unique technology. It excites the air to vibrate with the help of an oscillating plasma flame by sounding unobstructedly clear, extremely detailed and with absolute freedom. Thus, because the massless plasma flame is physically far superior to any dome or ribbon in terms of speed.



Enclosures carrying up to twelve 10-inch woofers ensure a fast and ultra-stable low frequent sonic foundation.



Our big 780 systems are born out of the sheer love of music. They pioneer the art of avant-garde loudspeaker aesthetics by at the same time representing the design language of the progressive Bauhaus style. In terms of build and sonic quality, they are unrivalled. They are the true epitome of the best possible listening experience, making even headwinds stop their breath.

Atlas in black acryl with “Irish Blue” horn

Atlas



Elegant speaker sculpture with the big hyperspherical 780er broadband horn, ion-tweeter, two 10-inch-woofer at the front and one subwoofer in the cabinet.

technical data

frequencies:
transmission range 25 Hz - 40 kHz
construction:
bass 3 x 10" driver
middle freuquency 1 x 2" driver hyperspherical wideband horn 780 mm
high frequency plasma tweeter
efficiency 93 dB/1W/1m
impedance 6-8 Ohm
dimensions (hxwxd) without horn 1600 x 380 x 760 mm
dimensions (hxwxd) with horn 1890 x 780 x 940 mm
weight 140 kg
capacity 100 W / 1000 W / 10 ms Impuls
price on request

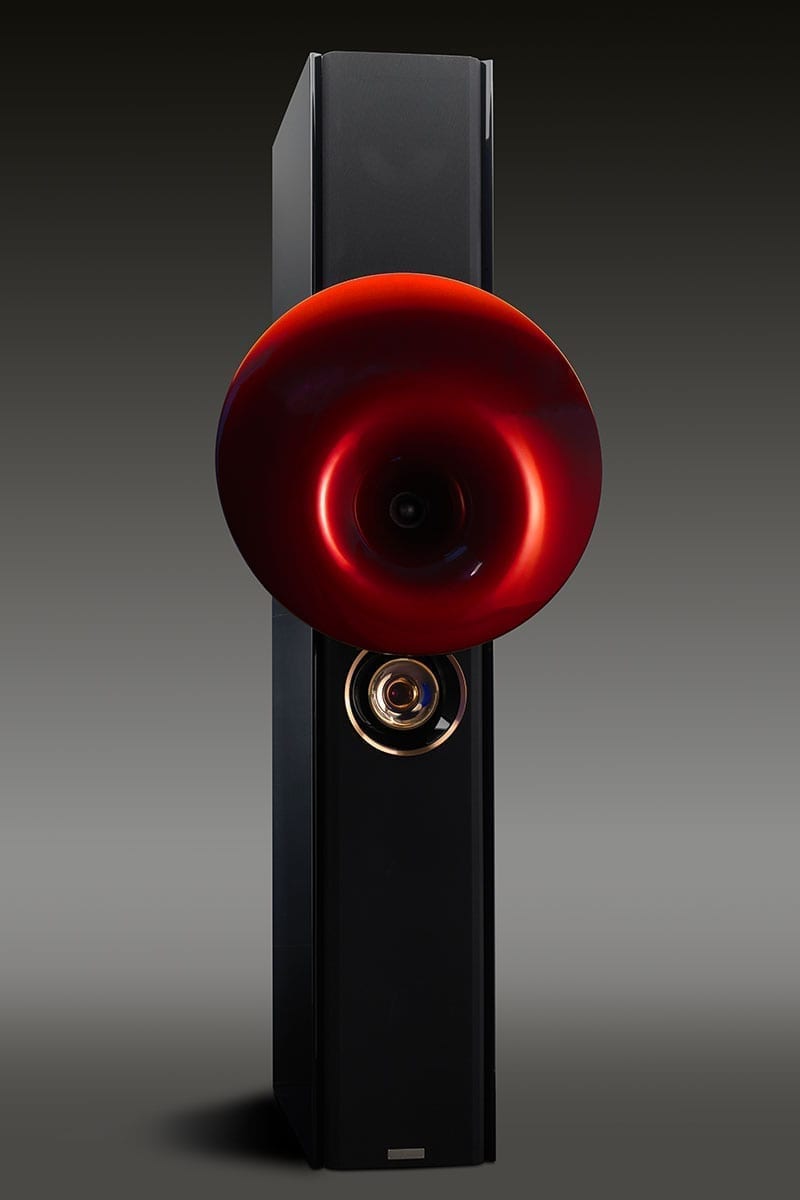

Apollon in black acryl und horn in “BricoRed”

Apollon



Room-high speakerpillar with ion tweeter, hyperspherical 780er broadband horn, four 10-inch-woofer at the front and two subwoofers in the cabinets.

technical data

frequencies:
transmission range 25 Hz - 40 kHz
construction:
bass 6 x 10" driver
middle freuquency 1 x 2" driver hyperspherical wideband horn 780mm
high frequency plasma tweeter
efficiency 96 dB/1W/1m
impedance 6-8 Ohm
dimensions (hxwxd) without horn 2300 x 380 x 810 mm
dimensions (hxwxd) with horn 2300 x 780 x 1000 mm
weight 320 kg
capacity 100 W / 1000 W / 10 ms Impuls
price on request

The seamlessly following midrange takes over a specially developed for this system 780 hyper-spherical horn unit.

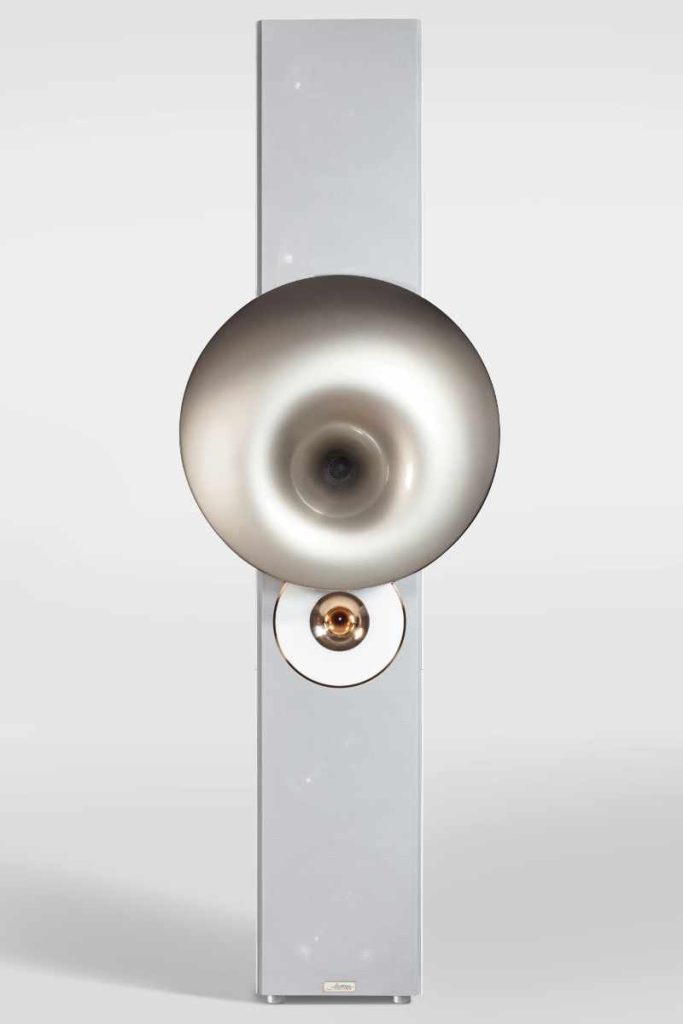

Hyperion



With the Acapella Hyperion we have created an exceptional transducer, capable of moving the standards in music reproduction. A musical titan, that rightly bears its name.
Whether the delicate tone of a flute, the unleashed force of a large orchestra, or the immediate dynamics of a drum kit, the Hyperion sees itself as a mediator of the highest competence.
Eight 15 inch drivers, exclusively manufactured for the Hyperion, are housed in elaborate, perfectly crafted cabinets for deep black bass and a tremendous lower cut-off frequency of 16 Hertz.
The seamlessly following midrange takes over a specially developed for this system 780 hyper-spherical horn unit. Thanks to particularly effective damping of rear sound components, the 2.5 inch dome used here works completely free of discolourations. The result is an unprecedented natural midrange reproduction.
The high range is once again provided by our well-proven TW 1-S ion tweeter.Its wide frequency range gives the Hyperion a frequency response of more than 11 octaves.
In the Hyperion, these characteristics combine to create a breathtaking cosmos of musical reproduction, with only one standard of comparison: Live music.

Technical Data

bass 4x 15" driver
middle frequency new 2,5" driver, driver hyperspherical horn 780mm
high frequency Acapella Ionenhochtöner TW1-S, erweiterte Hornfunktion
transmission range 16 Hz - 40000 Hz
efficiency 96 dB/1W/1m
impedance 8 Ω
weight 300 kg
dimensions (hxwxd) without horn 2470 x 440 x 790 mm
dimensions (hxwxd) with horn 2470 x 780 x 940 mm
