620er Horn

620er Horn





A revolutionary catalyst in loudspeaker design: Our slender and shapely 620 model line is crafted from the finest components we’ve created in over 40 years of experience in designing loudspeakers. The large 620 mm hyperspherical horn transmits four octaves without tonal colouration, going hand in hand with the hereditary virtue of highest dynamics.



The highs rely on our impressively performing ion tweeter. It excites the air to vibrate via an oscillating plasma flame with incomparable clarity and openness, far superior to any existing conventional tweeter concept.



Enclosures equipped with 10-inch woofers are supported by an additional subwoofer. This creates an authentic and open sound with a powerful bass foundation, almost equal to the live experience.



Cellini, High Cecilia and Campanile are absolute exceptions to the rule, representing a groundbreaking interplay of exclusivity, functionality and sound. They testify to our uncompromising way of thinking and make the hearts of music lovers leap. Their appearance is light and agile thanks to the puristic, elegant design and their athletic stylistic language. We at Acapella always have one principal aim in mind: to let you enjoy every moment of listening to music. Our 620 model line has been specifically designed to accelerate your emotions.

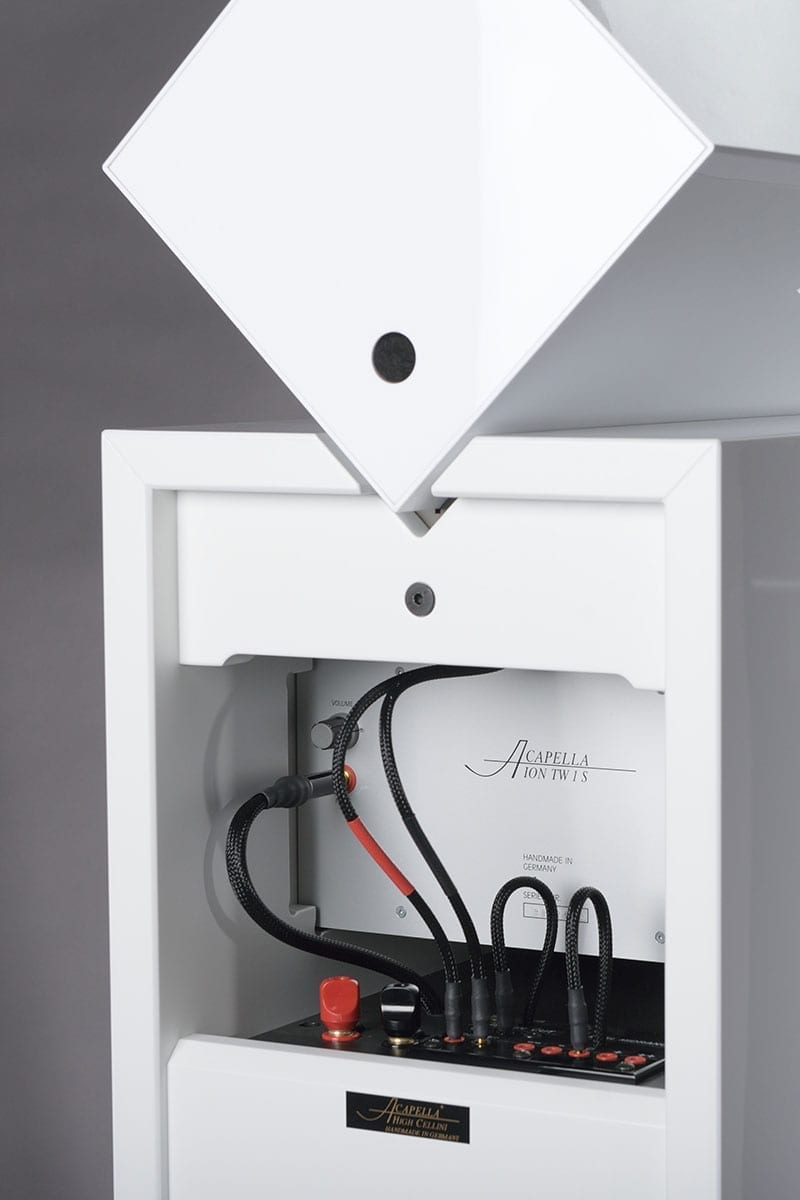

Pearl white Cellini with golden ion tweeter

Cellini



First combination with hyperspharical horn & ion tweeter and 10-inch-woofer.

technical data

frequencies
frequency range 30 Hz - 40 kHz
bass 30 Hz - 500 kHz
middle freuquency 500 - 7 kHz
high frequency 7 kHz - 40 kHz
construction:
bass 1 x 10" driver; 2 x 10" driver (high)
middle freuquency 1x 1" driver hyperspherical wideband horn 620mm
high frequency ION-Tweeter
efficiency 91 dB/1W/1m
impedance 8 Ohm
dimensions (hxwxd) without horn 1460 x 330 x 475 mm
dimensions (hxwxd) with horn 1685 x 620 x 605 mm
weight 105 kg, high version 120 kg
capacity 100 W - 1000 W / 10 ms Impuls
price on request

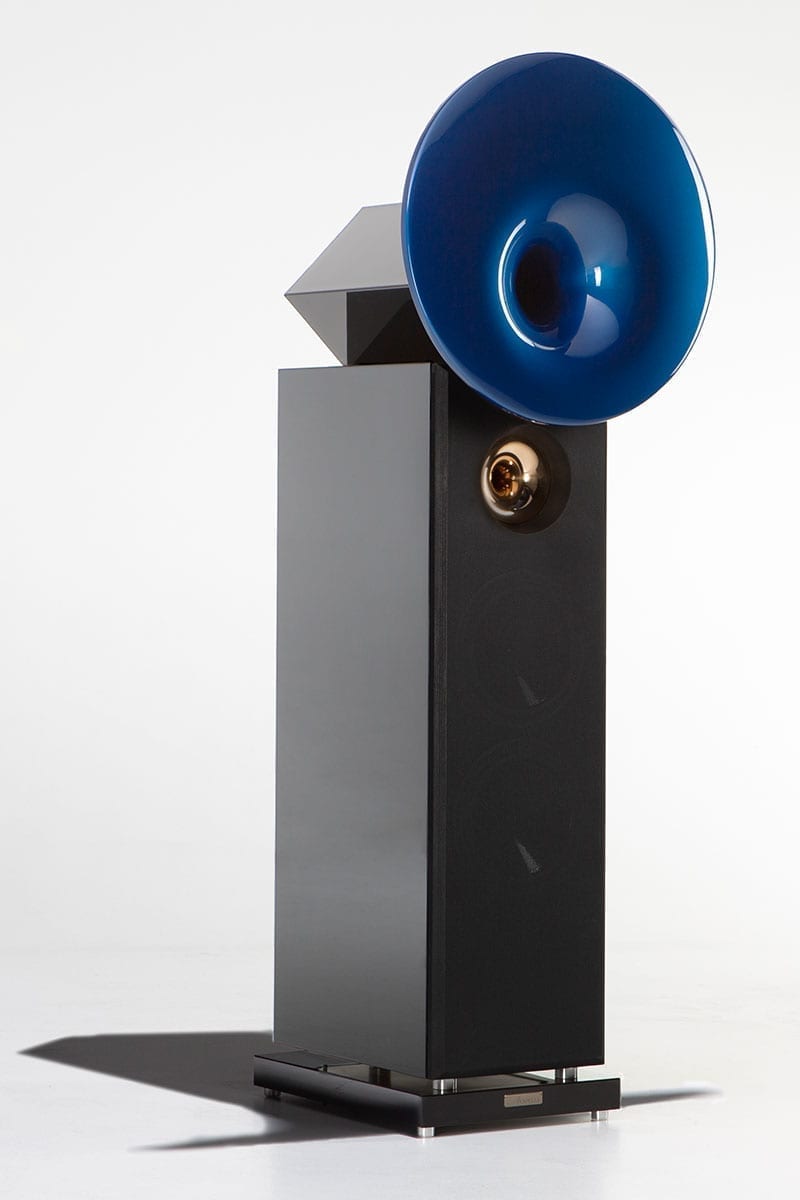

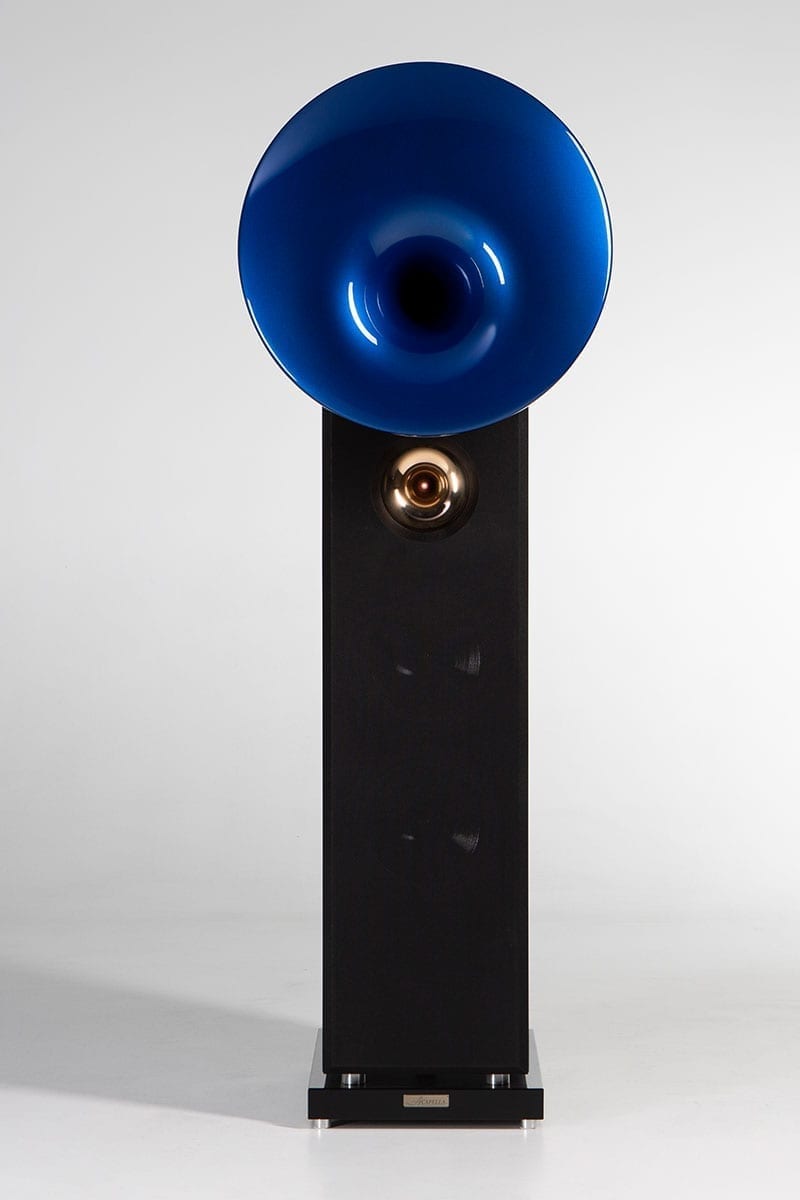

High Cecilia in black acryl & brilliant “Irish Blue” horn

High Cecilia



Consequent combination of hyperspherical horn, ion tweeter and two 10-inch-woofer at the front and a subwoofer in the cabinet.

technical data

frequencies
frequency range 25 Hz - 40 kHz
bass 25 Hz - 500 kHz
middle freuquency 500 - 7 kHz
high frequency 7 kHz - 40 kHz
construction:
bass 3 x 10" Driver
middle freuquency 1x 1" driver hyperspherical wideband horn 620mm
high frequency ION-Tweeter
efficiency 93 dB/1W/1m
impedance 8 Ohm
dimensions (hxwxd) without horn 1560 x 350 x 560 mm
dimensions (hxwxd) with horn 1780 x 620 x 700 mm
weight 140 kg
capacity 100 W - 1000 W / 10 ms Impuls
price on request

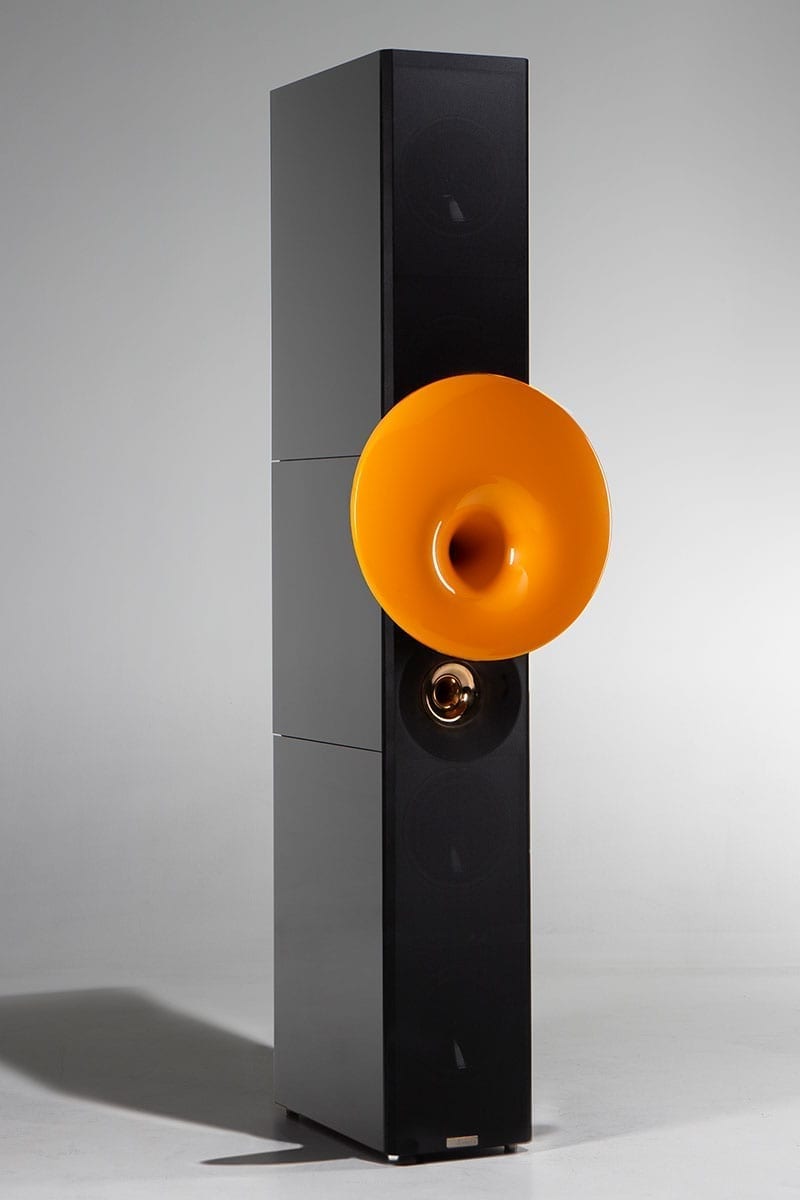

Campanile in black acryl & “Yellow-Gold” horncombination

Campanile



Room-high speakerpillar with ion tweeter, hyperspherical horn and four 10-inch-woofer at the front

technical data

frequencies
frequency range 25 Hz - 40 kHz
bass 25 Hz - 500 kHz
middle freuquency 500 - 7 kHz
high frequency 7 kHz - 40 kHz
construction:
bass 4 x 10" driver
middle freuquency 1x 1" driver hyperspherical wideband horn 620mm
high frequency ION-Tweeter
efficiency 95 dB/1W/1m
impedance 6 - 8 Ohm
dimensions (hxwxd) without horn 2360 x 350 x 690 mm
dimensions (hxwxd) with horn 2360 x 620 x 800 mm
weight 250 kg
capacity 100 W - 1000 W / 10 ms Impuls
price on request
